Hot air balloons float according to the basic principles of physics. The key element is the difference in density between the heated air inside the shell and the cooler atmospheric air. Heating the air inside the balloon reduces its density, leading to a buoyancy force. According to Archimedes’ law, this force balances the weight of the balloon, allowing it to rise.
The temperature of the air inside the balloon is critical. The higher the temperature, the greater the density difference and the more efficient the lift. This usually reaches about 100°C in a balloon. The volume of the shell also remains an important factor – more heated air increases lift. The average balloon is capable of holding about 2,800 m³ of air.
The balloon is controlled by adjusting the internal temperature. The pilot controls the intensity of the burner flame, which allows the air to be heated or cooled, and consequently changes the flight altitude. Direction depends on winds at different altitudes. Changing the altitude allows the use of different air currents, which enables more precise control of the flight path.
History and development of hot air balloon technology
The history of hot air balloons begins in the 18th century and is full of breakthroughs and technological advances. The first successful experiments with such balloons were conducted by the Montgolfier brothers in France.
on September 19, 1783, Francois Pilatre De Rozier unveiled a balloon named“Aerostat Reveillon.” The first flight involved a sheep, a duck and a rooster, and the balloon stayed in the air for 15 minutes. Just two months later, on November 21, 1783, the first flight with humans on board took place. The design by brothers Joseph and Etienne Montgolfier soared over Paris for 20 minutes, making history as a pioneering achievement.
Breakthroughs in the history of ballooning
In 1785, Jean Pierre Blanchard and John Jefferies became the first people to cross the English Channel by balloon.
In 1793, Jean Pierre Blanchard made the first balloon flight in North America, watched by George Washington.
The 1950s brought a revival of balloon technology thanks to Ed Yost‘s innovations. The introduction of new technical solutions paved the way for the development of this form of aviation.
Development of balloon technology
For more than 150 years, gas balloons dominated over hot air balloons. It was not until the 1960s that Ed Yost introduced revolutionary propane burners, which allowed longer flights and easier control of balloons.
Interesting fact: Today’s hot air balloons can float for up to several hours, a huge advance over the Montgolfier brothers’ first 15-minute flights.
Technological advances are still ongoing. In 2021, Space Perspective began selling tickets for stratospheric balloon flights, which, starting in 2024, are expected to take passengers to altitudes that allow observation of the “edge of space.”
The development of hot air balloons is a testament to human creativity and determination to overcome limits. From the first experiments with paper structures to advanced technologies capable of circumnavigating the globe, the history of ballooning inspires and shows how far human ingenuity reaches.
Basic physics of hot air balloon flight
Hot air balloon flight is based on fundamental physical principles that allow this unique vehicle to float in the air. Aerostatic buoyancy, resulting from the density difference between the heated air inside the balloon and the cooler atmospheric air outside, plays a key role.
Archimedes’ law in the air
The principle of balloon lift is based on Archimedes’ law, which states that any body immersed in a fluid is subjected to an upward buoyancy force equal to the weight of the displaced fluid. In the case of the balloon, this “fluid” is atmospheric air. Heating the air inside the balloon reduces its density, allowing the balloon to displace a larger volume of cooler air than its total weight.
The buoyancy force acting on the balloon is expressed by the formula:
Fw = ρz ⋅ V ⋅ g
Where:
- Fw – buoyancy force,
- ρz – density of cold atmospheric air,
- V – volume of the balloon,
- g – acceleration of the earth.
Balance of forces
In order for a balloon to float, the buoyancy force must exceed the total weight of the balloon, including the weight of the shell, basket, passengers, equipment and heated air inside. The lift condition is described by the equation:
Fw > mc ⋅ g
Where:
- mc – the total mass of the balloon including its contents.
Interesting fact: An average hot air balloon with a volume of 2800 m³ can lift a payload weighing about 1000 kg.
Control of flight altitude
The pilot controls the height of the balloon by adjusting the temperature of the air inside the shell. Two main methods are used:
Ascent:
- Increasing the power of the burner,
- Heating the air inside the balloon,
- Reducing the density of the inner air.
Descent:
- Decreasing the power of the burner or turning it off,
- Opening the flap at the top of the balloon to release warm air,
- Increasing internal air density.
Precisely maintaining altitude requires taking into account changes in temperature and atmospheric pressure at different altitudes.
Effect of temperature on air density
The relationship between temperature and air density plays a key role in the mechanics of balloon flight. As temperature increases, air density decreases according to the equation of state of a perfect gas:
ρ = p / (R ⋅ T)
Where:
- ρ – density of air,
- p – pressure,
- R – individual gas constant of air,
- T – absolute temperature.
During flight, the temperature inside the balloon usually reaches about 100°C, which significantly reduces the density of the air compared to the environment.
Understanding these principles of physics is crucial for safe and efficient hot air balloon piloting. Constant monitoring of atmospheric conditions and adjustment of flight parameters keeps the balloon at the desired altitude and trajectory.

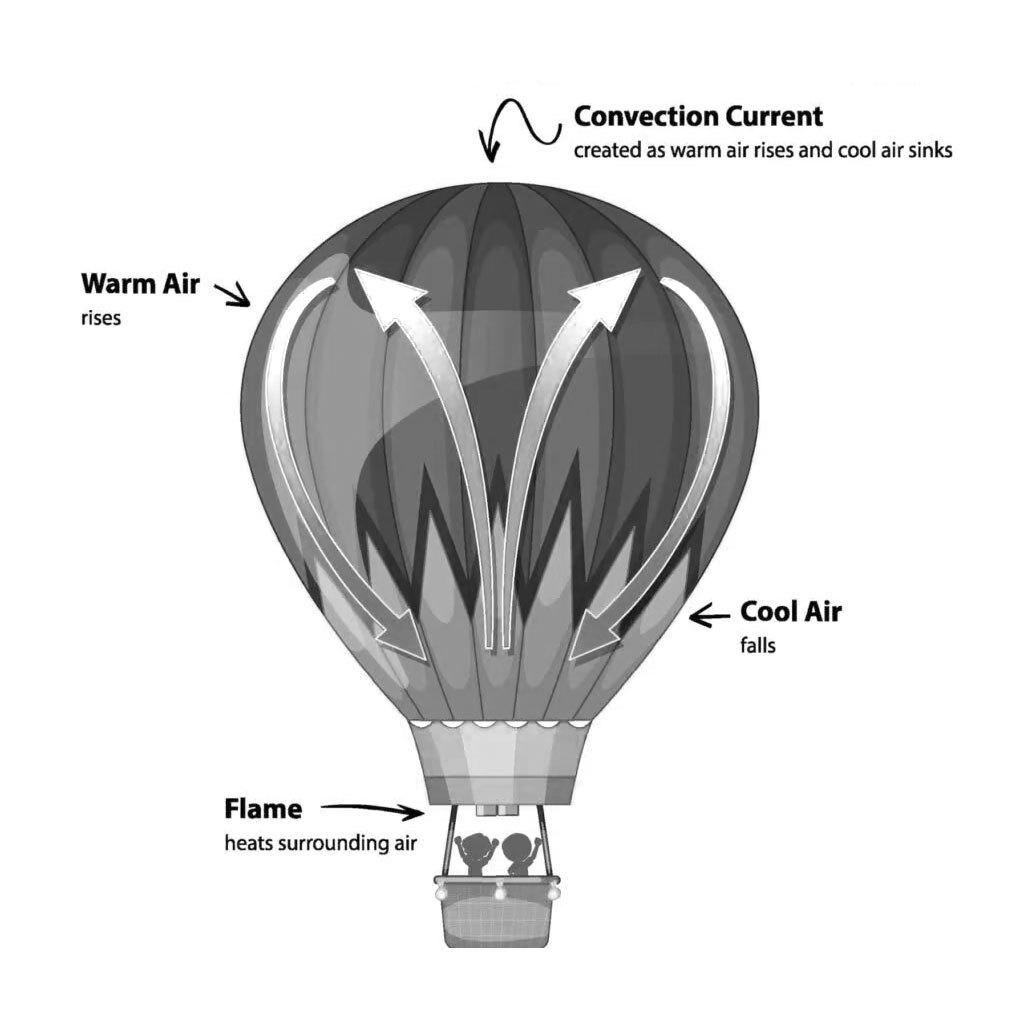

The effect of temperature on the behavior of gases in the balloon envelope
Temperature plays an important role in the performance of hot air balloons, directly affecting the dynamics of the gases in the envelope. Knowing the relationship between temperature and air properties enables effective flight control and ensures safety.
Thermal expansion of air
Heating the air in a balloon causes an increase in its volume. This phenomenon, known as thermal expansion, is a key mechanism of lift. Higher temperatures cause air molecules to move faster and occupy more space, which reduces the density of the air.
Pilots constantly monitor the temperature in the envelope to adjust it to current conditions. Too low a temperature can result in sinking, while too high a temperature leads to the risk of structural damage.
Pressure changes in the shell
An increase in temperature also affects the air pressure inside the balloon. Due to the opening at the bottom of the shell, the internal pressure naturally equalizes with the atmospheric pressure. This design feature ensures stability and protects against overloading.
Interesting fact: The air temperature in the balloon during flight can reach 120°C, while the surface of the shell heats up to about 100°C.
Effect of ambient temperature on burner performance
Atmospheric conditions, including ambient temperature, have a significant impact on burner performance. In colder conditions, the device must operate more intensively to maintain the appropriate temperature inside the coating. In warmer climates, it is necessary to carefully regulate the intensity of the flame to avoid overheating.
When preparing for a flight, pilots analyze key factors such as:
- Thermal conditions,
- Air humidity,
- Planned altitude,
- Total weight of the balloon.
A thorough understanding of the effects of temperature on gas behavior allows for precise flight management. This allows hot air balloons to be safe, efficient and adaptable in changing weather conditions.
The role of burners and heating system in balloon control
Burners and the heating system are the foundation of hot air balloon operation, enabling precise control of altitude and flight stability. Their importance goes beyond floating the structure – they are a key element of control and maneuvering in the airspace.
Precise altitude control
Balloon burners are advanced devices that convert liquid propane into heat energy. The pilot controls the intensity of the flame, allowing the temperature of the air inside the shell to be precisely adjusted. An increase in temperature results in the balloon floating, while a decrease in power or turning off the burner leads to a descent.
Interesting fact: The burner in the balloon can generate thermal power of 2 to 3 MW, which corresponds to enough energy to heat about 30 single-family houses.
Modern burners are equipped with two types of valves:
- The main valve (blast valve): providing intense and rapid heating.
- Whisper burner valve: allowing gentle maneuvering with reduced noise levels, which is particularly useful when flying over sound-sensitive areas.
Temperature and stability management
Effective use of the heating system requires technical expertise, experience and the ability to predict atmospheric conditions. The pilot must constantly monitor the temperature in the envelope and adjust the burner operation to ensure an optimal density difference between the air inside and outside the balloon.
Key elements of heating system management include:
- Frequency of burner activation: depending on weather conditions, the burner is activated every 30-60 seconds.
- Duration of heat dump: lasts from 2 to 5 seconds, and can be longer in case of intense ascent.
- Temperature monitoring: pilots use specialized tools to avoid overheating the shell material.
Innovations in heating systems
Modern technologies are improving the efficiency and safety of heating systems. Major innovations include:
- Dual-fuel system burners: enabling the use of propane and butane, increasing flexibility during flights.
- Integrated monitoring systems: providing real-time data on temperature, fuel consumption and equipment performance.
- Noise-reducing burners: using innovative nozzles and deflectors to minimize sound levels, which is particularly important when flying over urban areas or protected areas.
Successful management of a heating system requires intuition, experience, and the ability to anticipate changes in temperature and pressure at different altitudes. Key competencies for pilots include quickly adjusting the operation of the burner to weather conditions to ensure safe and efficient flights.
The physics of balloon flight at different atmospheric altitudes
Hot air balloon flight is a dynamic phenomenon whose characteristics change with increasing altitude. Understanding the physical basis of flight at different atmospheric levels plays a key role in safe and efficient piloting.
The effect of altitude on air density
As altitude increases, air density decreases, which significantly affects balloon behavior. At lower levels of the atmosphere, where the air is more dense, the balloon requires less heat to float. At higher altitudes, it is necessary to increase the temperature inside the envelope to maintain adequate lift.
For example, at an altitude of about 5,000 meters above sea level, the density of the air is 40% lower than at sea level. Such a difference requires a higher internal temperature of the air in the balloon to compensate for the decrease in buoyancy force.
Interesting fact: The altitude record for a hot air balloon is 21,000 meters. It was achieved in 2005 by Vijaypat Singhania in India.
Changes in the temperature of the atmosphere
The temperature in the atmosphere changes with altitude, which affects the efficiency of balloon flight. In the troposphere, the lowest layer of the atmosphere, the temperature drops by an average of 6.5°C for every 1,000 meters of altitude. In the stratosphere, which begins at an altitude of about 10-12 kilometers, the temperature begins to gradually increase.
The effects of these temperature changes:
- In the troposphere: The decrease in outside temperature promotes the maintenance of the temperature difference between the air in the balloon and the environment.
- In the stratosphere: An increase in external temperature can make it difficult to maintain an adequate temperature difference, thus limiting the maximum flight altitude.
Effect of atmospheric pressure
Atmospheric pressure decreases with altitude, which affects the behavior of the balloon. At low altitudes, where the pressure is higher, the balloon’s envelope remains tighter. As the external pressure decreases, the balloon’s shell expands.
This phenomenon requires careful monitoring, as over-expansion can lead to damage to the shell. To prevent this, balloons are equipped with valves that allow the controlled release of hot air to regulate the internal pressure.
Knowing the effects of altitude, temperature and pressure on balloon behavior is integral to safe and successful flight. Pilots must regularly adjust the temperature inside the envelope and constantly observe the changes that occur during flight. Only by carefully analyzing atmospheric conditions can optimal performance and safety be ensured at every stage of the journey.
Forces acting on the balloon during ascent and descent
Hot air balloon flight is a unique example of the balance of forces found in nature. During ascent and descent, different forces act on the balloon, which require precise control to ensure flight stability and safety.
Forces during ascent
During ascent, the main upward force is the buoyancy force. It is created by the density difference between the heated air inside the balloon and the cooler ambient air. The greater the density difference, the stronger the buoyancy, which lifts the balloon.
It is counteracted by two forces:
- The force of gravity: A constant downward force due to the weight of the balloon, passengers and equipment.
- Aerodynamic drag: A drag force that increases with the speed of ascent, inhibiting the upward movement of the balloon.
Control of ascent is accomplished by a burner that heats the air in the balloon. Increasing the temperature increases the buoyancy force and speeds up the ascent.
Forces during descent
During descent, the dominant force becomes the force of gravity, which causes the balloon to move downward. At the same time, the buoyancy force decreases due to the cooling of the air inside the shell. Aerodynamic drag acts in the opposite direction of the balloon’s motion, slowing the descent process.
The pilot has several ways to control the descent:
- Reducing burner power: Allowing the inner air to cool, which lowers the buoyancy force.
- Opening the valve at the top of the balloon: Allows some of the hot air to be released, accelerating the descent.
- Emergency ballast discharge: Reducing the weight of the balloon helps slow the descent or stop the downward motion.
Interesting fact: The record-breaking hot air balloon flight lasted 160 hours and 34 minutes. It was achieved in 2015 by Russian pilot Fyodor Konyukhov during an around-the-world flight.
Effective management of the forces acting on the balloon requires extensive technical knowledge, experience and intuition on the part of the pilot. Constant monitoring of atmospheric conditions, air temperature in the envelope, and the speed of ascent and descent allows the pilot to maintain flight safety and comfort. The ability to react quickly to changes in the environment is crucial to successful and safe hot air balloon travel.
The importance of shell volume and shape for flight efficiency
The volume and shape of a hot air balloon’s envelope are fundamental to its performance, lifting power and stability in flight. These parameters also affect fuel consumption, maneuverability and overall aerodynamic efficiency.
Effect of volume on lift force
The volume of the shell determines the amount of hot air that can be collected inside, which directly affects the buoyancy force generated. Higher volume allows heavier loads to be lifted, increasing the balloon’s versatility. For example, a balloon with a volume of 2,800 m³ can lift a weight equal to about 1,000 kg, equivalent to the weight of a small car.
However, designers must strike a balance between the size of the balloon and its practicality. Large balloons offer greater carrying capacity, but require more fuel to heat the air and are more difficult to handle. Smaller balloons have lower fuel consumption and greater ease of maneuvering, but their payload capacity is limited.
Interesting fact: The largest hot air balloon ever built had a volume of 74,000 m³, equivalent to the capacity of about 30 Olympic-sized swimming pools.
The importance of the shape of the shell
The shape of a balloon’s shell affects its aerodynamic properties, flight efficiency and stability. The traditional “teardrop” shape remains the most widely used because of its advantages, but designers are increasingly experimenting with new forms to improve flight performance.
Characteristics of different shell shapes:
- “teardrop” shape:
- Best surface-to-volume ratio,
- Minimizes drag,
- Provides stability during lift.
- Spherical shape:
- Largest volume with smallest material area,
- More difficult to steer due to susceptibility to side winds.
- Custom shapes:
- Used mainly for advertising or artistic purposes,
- Usually less aerodynamically effective, but eye-catching.
Optimizing shape for energy efficiency
Modern research is focusing on shell shapes that reduce fuel consumption and improve efficiency. One innovative solution is the use of insulated shells, which reduce heat loss by up to 50% compared to standard designs.
Insulated shell structure:
- Outer layer: Weather-resistant,
- Insulating layer: Made of heat-reflective material,
- Inner layer: Providing warm air retention.
The insulated shell not only reduces fuel consumption, but also extends the life of the material due to less thermal stress. In addition, this solution enables longer flights at a lower operating cost.
Optimization of force distribution
The distribution of forces acting on the shell is another key design aspect. Studies show that the lower part of the balloon generates a negative lift force, which increases the total weight, while the upper part is responsible for most of the buoyancy force. This knowledge allows engineers to better distribute materials and optimize shape, resulting in stability and flight performance.
The volume and shape of a balloon’s envelope are important elements affecting its flight capabilities. Constantly developing technologies and innovative design solutions make it possible to improve energy efficiency, increase safety and achieve better aerodynamic properties, which opens up new opportunities in the field of ballooning.
Impact of atmospheric conditions on balloon flight mechanics
Atmospheric conditions play an important role in the mechanics of hot air balloon flight. A variety of weather factors affect every stage of the journey, from takeoff to navigation to landing. Understanding these relationships is essential for efficient and safe piloting.
Effect of temperature on balloon performance
Ambient temperature significantly affects balloon efficiency. In cooler conditions, the temperature difference between the air inside the envelope and the outside air is greater, which improves lifting power and reduces fuel consumption. This situation makes the flight more efficient.
In hot weather, the balloon may encounter difficulties in maintaining adequate buoyancy force. The higher ambient temperature reduces the difference in air density, which requires more intense heating and increases fuel consumption.
Interesting fact: In extremely hot conditions, the temperature of the air inside the envelope can reach as high as 120°C, which places high demands on the materials used in the balloon’s construction.
The role of humidity in flight mechanics
Air humidity also has a significant impact on the balloon’s performance. Air with high humidity is heavier, which can limit the effectiveness of the lifting force. In addition, humidity affects the operation of burners and the process of heating the air inside the shell.
Effects of high humidity:
- Decreased efficiency of burners,
- Higher fuel consumption,
- Possibility of condensation of moisture inside the shell,
- Changes in the characteristics of thermal air currents.
Pilots need to take humidity levels into account when planning a flight to adjust their flight strategy and optimize the performance of balloon systems.
Effect of atmospheric pressure on flight altitude
Atmospheric pressure has a significant impact on the maximum altitude that a balloon can reach. As altitude increases, pressure decreases, resulting in lower air density. To maintain lift at higher altitudes, it is necessary to heat a larger volume of air.
Changes resulting from reduced atmospheric pressure:
- A decrease in air density, requiring more intense heating,
- More frequent use of burners to maintain altitude,
- Limitations in maximum flight altitude.
In mountainous regions, where atmospheric pressure varies significantly, altitude control becomes particularly difficult. Regular monitoring of pressure and adjustment of burner operation is crucial in such situations.
Awareness of the impact of atmospheric conditions on flight mechanics is crucial for safety and efficiency. Pilots must constantly analyze temperature, humidity and atmospheric pressure, adjusting their operations to changing circumstances. With knowledge and experience, it is possible not only to optimize flight parameters, but also to ensure that passengers have a comfortable and safe experience while traveling in a hot air balloon.
Summary
The ability of these structures to float in the air is based on fundamental principles such as the difference in air density, Archimedes’ law and thermal expansion of gases.
Understanding the mechanics of balloon flight requires consideration of many factors: the role of burners and the heating system, the importance of volume and shape of the envelope, and the impact of atmospheric conditions. Each of these elements plays a key role in ensuring the safety and efficiency of flight.
Modern ballooning, drawing on centuries of tradition, uses the latest technologies and materials. Innovations in the design of shells, heating systems or navigation systems are constantly increasing the efficiency and safety of flight, opening up new possibilities for these majestic aerial vehicles.
A hot air balloon flight is not only an extraordinary experience, but also an excellent lesson in physics in practice. Understanding the principles governing flight allows you to appreciate the complexity and beauty of this seemingly simple invention, which has inspired people to reach for the sky for centuries.
